SET-UP: D-HANDLE BASE D形手柄底座, t9 Y$ \1 D* u5 l0 {, H: M
Motor Quick Release6 e; S0 `4 t* T& D N9 F4 Z( F
CAUTION: Turn the router off and disconnect it from the power supply.9 q* j2 Q: T; C& a3 h$ y. l8 f

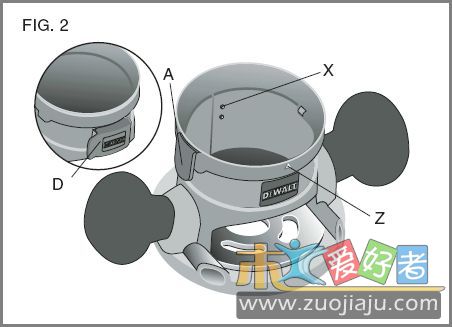

1. Open the locking lever (D) on the base.
5 l5 _+ b) C' c. \ J% P2. Grasp the base with one hand while depressing the quick release latches (A).
, o' L* K7 U+ d8 v# C3. With the other hand, grasp the top of the motor unit and lift it from the base.# t2 i. o' P& d0 s
Inserting the Motor into the D-Handle Base (Fig. 7)/ D, G3 d. j7 _. Y3 [8 w3 c
CAUTION: Turn the router off and disconnect it from the power supply./ C, k; ^/ U' j% ~# H
1. Open the locking lever (D) on the base.. _/ Y& B( G- k, N& [
2. Thread the depth adjustment ring (B) onto the motor until the ring is about halfway between
& u" c e( U! Kthe top and bottom of the motor. Insert the motor into the base by aligning the groove on
4 |6 }( _0 B: w: \; Cthe motor (H) with the guide pins (X) on the base. Slide the motor down until the depth
+ D: v; p' E8 K: q4 S3 Iadjustment ring snaps into the quick release latches (A).
6 f2 z) ^5 O, D& I# b3. Close the locking lever when the desired depth is achieved. For information on setting cutting
: L w/ g8 X( W: [$ w- {depth, see the heading Adjusting the Depth of Cut in the OPERATION: D-HANDLE
, U7 ~1 V3 N) Z8 [- T8 FBASE section of this manual.7 H0 I0 L4 }. I6 n
4. Be sure that the trigger switch (N) is released and the trigger lock button (O) is in the
: h; f3 F# \5 G8 U* r7 {unlocked and off position./ h( E& n! U) o6 p" ?9 g7 y* P
5. Unlock and disconnect the detachable cordset (L) from the motor.
. n6 f$ E& v( w, F0 L; Z6. Connect the detachable cordset (L) to bottom of D-Handle and lock the cord.. V! \& V9 |* r
7. Connect the short cord (AA) from top of D-Handle to the motor as shown. Be sure the cord q1 j- K( i! i' x
is locked.* W+ {. L5 @8 v( b1 ]" g( d) v
If you have questions or comments, contact us.- c; [9 n' e) ?2 b- b) J: n
Pour toute question ou tout commentaire, nous contacter.3 Z! Y! G7 [ }/ a
Si tiene dudas o comentarios, contáctenos.
) {4 H4 g0 N: ]+ i1-800-4-DEWALT • www.dewalt.com: ^& B; [3 J. }& g, z* h4 @- o
8. Place the toggle switch in the on position. This allows the trigger switch on the D-handle; P- a5 ?- G5 R8 P
to control the router.

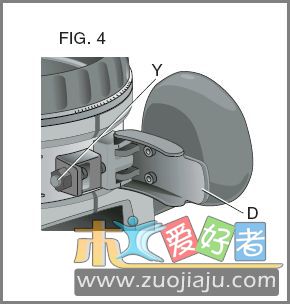

5 Q& P7 t/ F/ m: gLocking Lever Adjustment (Fig. 4)
% r# {. T, }. B9 E6 F: x* ~0 aCAUTION: Turn the router off and disconnect it from the power supply.* ]9 k2 b" y+ E( C& f9 |: P
You should be able to clamp the locking lever without excessive force. Excessive force may( p' X; W$ [1 y) l+ a
damage the base." ~, e! d& U+ x8 P7 j
You should not be able to move the motor in the base when the locking lever is clamped. To
& H! r& C/ ] d$ Eadjust the locking lever’s clamping force, open the locking lever (D) and turn the nut (Y) in
0 e6 a8 b' G7 L6 P8 L0 F5 m. i: ?small increments. Turning the nut clockwise tightens the lever while turning the nut counterclockwise P+ U" m& n8 \ `, H
loosens the lever.

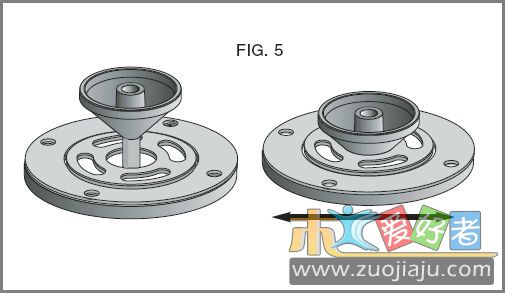

" k' D0 F4 B/ t& M2 m6 f; kCentering the Subbase (Fig. 5)
2 r0 A4 M- q2 d$ C& p* qCAUTION: Turn the router off and disconnect it from the power supply.3 j- h6 h# ^6 D# c* C+ y7 q
If you need to adjust, change, or replace the subbase, a centering tool is provided. The centering3 ^: L) o* ~: U' {
tool consists of a cone and a pin. To adjust the subbase, follow the steps below.* R! X4 w$ o) S: M* T3 V- v& S: a
1. Loosen but do not remove the subbase screws so that the subbase can move freely.
# K9 {& B* u( ?# z8 |8 l2. Insert the pin into the collet and tighten the collet nut.
/ C& u% `) F/ n4 N9 _3. Insert the motor into the base and clamp the locking lever on the base.
7 ?* b7 L/ b$ d" K4. Place the cone on the pin and lightly press down on cone until it stops as shown. This will
7 G+ |* r! F1 T- U" Ocenter the subbase.7 {0 o/ s- L& M
5. While holding down on the cone, tighten the subbase screws.
, a9 L! F2 ?( V; ~OPERATION: D-HANDLE BASE6 ?7 G2 r' l( K
Knob Locations7 F( j* @% k$ T$ B6 |% F: m7 J7 b
Grip the D-Handle with one hand and place the other hand on the the knob. The D-Handle
/ E. D% @6 j* w3 L! prouter base has two positions for the knob to accommodate right or left hand use.
$ w5 y. {; s3 H+ J+ x* TCAUTION: Use both hands at all times to maintain control.
) L F' T; O: C$ u6 \* {" @Trigger Lock" b* k6 _# G- `- r6 ]1 l
To lock the trigger, pull the trigger switch (N) completely, then push the trigger lock button (O).0 n% A$ y2 Z+ {% p: w0 J
The router will remain on after you remove your finger from the trigger. To unlock the trigger lock5 F) s/ J0 M( P; J2 D# ?# b
button, pull the trigger and release. The lock button will pop out and the router will turn off.$ H- R/ ?4 s: ?; n1 I: x; ]( B8 B

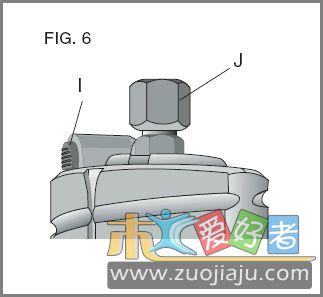

Bit Installation and Removal (Fig. 6)
: ]+ T3 ~; ^) \ x0 E- b6 iCAUTION: Turn the router off and disconnect it from the power supply.! O, F$ V R: K; @0 i5 r
1. To install a bit, insert the round shank of the desired router bit into the loosened collet as far
/ q3 d* c; m, E0 Z. j! G1 Xas it will go and then pull it out about 1/16". Using the wrench(es) provided, turn the collet$ K& K% m1 j/ k+ r' f4 s
nut (J) clockwise while holding the spindle shaft with the second wrench. [On the DW618,
. _& h$ a9 t1 P% |) ydepress the spindle lock button (I) to hold the spindle shaft.]( t/ a% q5 u' a
2. To remove a bit, hold the spindle shaft while turning the collet nut (J) counterclockwise with
1 f1 p% }) _9 p% n) l1 L6 I5 Fthe wrench provided. [Hold the spindle by depressing the spindle lock button (I) on the( w5 c( I- m% P- {" F) n
DW618.] The self-releasing collet nut will turn approximately 3/4 of a turn and then become! G: j0 n0 @1 G
tight again. At this point the bit cannot be removed. Continue turning the collet nut counterclockwise./ K5 ~4 z& V9 `3 B& f6 K
This lifts the collet, allowing the bit’s removal.
! d" t$ B8 L b4 D8 kCollets( Y" d1 F( \! F2 \
NOTE: Never tighten the collet without first installing a router bit in it. Tightening an empty collet,! S) [; A/ z! `
even by hand, can damage the collet.
8 s5 o8 W+ X2 b$ |4 P1 eTwo collets are included with the motor: one 1/4" and one 1/2". To change collet sizes, unscrew
- R7 P, _; h" `7 othe collet assembly as described above. Install the desired collet by reversing the
( H/ @: c7 `% E$ X5 o' xprocedure.The collet and the collet nut are connected. Do not attempt to remove the collet from
/ F! A9 ]0 x' O9 S8 \/ Fthe collet nut.

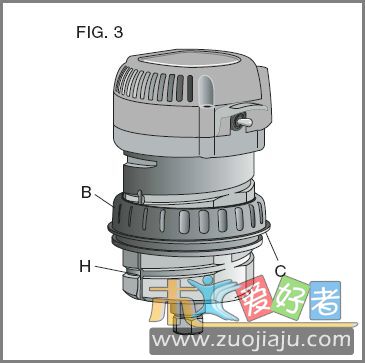

( s4 R* F! \1 i! x& e( W0 E: B0 QAdjusting the Depth of Cut (Fig. 3)- N/ I6 Q. T1 b9 J, K# W' c" g
CAUTION: Turn the router off and disconnect it from the power supply.
. M7 h& Q& q/ `. Z R* Q1. Select and install the desired bit. See the heading Bit Installation and Removal.
0 ~+ |6 D1 W0 u' d, @# |* Y3 S2. Place the router on its base on the work piece.3 b$ \0 h& {4 @+ t
3. Open the locking lever (D) and turn the depth adjustment ring (B) until the bit just touches
1 N; K! x! z; n9 k. O [/ ^the work piece. Turning the ring clockwise raises the cutting head while turning it counterclockwise; R. Q( @9 P- D6 N" `+ L- h7 Y
lowers the cutting head.
& i- k; D2 r# @. C2 w0 o4. Move the adjustable scale clockwise so that 0 on the scale is located exactly above the* L8 x5 Z! I! P& _3 ^
pointer (Z) on the base.5 o* P u1 i2 U, C0 D9 t
5. Turn the depth adjustment ring along with the adjustable scale to the desired depth. Note
0 K% A: ]9 ]7 m$ x2 @, g! F/ S9 dthat each mark on the adjustable scale represents a depth change of 1/64" or .015"7 t$ X9 p# Q& ], @4 W4 `- i
(.4mm).6 Y& F+ ]- h$ y$ Z
6. Close the locking lever (D).: \. G) K0 H8 Y+ W2 }' H! i
Using a Parallel Fence+ _; d. \: ?/ P5 g; _! N
A parallel fence (DW6913) is available from your local retailer or service center at extra cost.
/ x1 @/ S+ ~3 d0 P% [Follow the assembly instructions included with the fence. Insert the two bars through the holes2 ?5 C' s- q1 x- B7 Z5 J
in the router base. Adjust as needed for parallel routing. |
|
