请教前辈 powermill钻孔程序的问题

baker

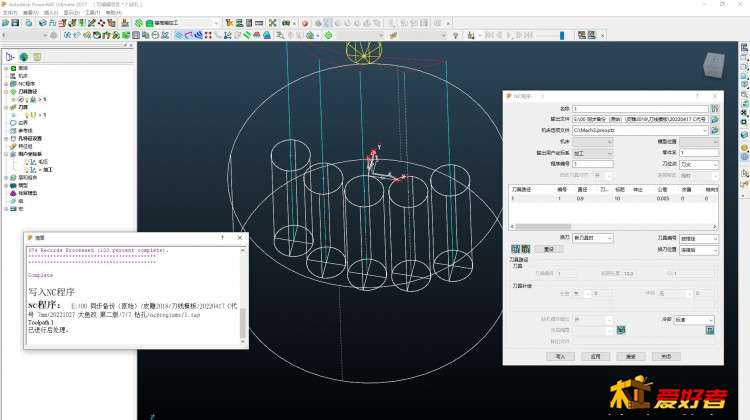

各位大哥好，今天用powermill编钻孔，五个孔，都点到了，最后后处理输出的程序模拟只有4个孔。。。请大家帮帮我看看 错在哪了  谢谢 谢谢谢谢


%
( Date - 1.11.22 - 22:50:34 )
( DP Version 1600  Option File : Mach3 )
( TOOL TYPE DRILL )
( TOOL ID   1 )
( TOOL DIA. .9 LENGTH 10.0 )
( ALLOWANCE = +0.0 )
N1 T1 M6
G90
( ======== )
( TOOLPATH - 1 )
( ToolPath Time - 00:00:46 )
( ======== )
G0 X0.0 Y0.0 S15000 M3 M8
G43 Z5.0 H01
Y-.506
G83 Z-3.5 R5.0 Q.5 P0 F3000
G80 M9 M59
G83 Z-3.52 P0 F3000
X-1.103 Y-.31 Z5.0
G80 M9 M59
G83 Z-3.584 P0 F3000
X-2.071 Y.253 Z5.0
G80 M9 M59
G83 Z-3.52 P0 F3000
X1.103 Y-.31 Z5.0
G80 M9 M59
G83 Z-3.584 P0 F3000
X2.071 Y.253 Z5.0
G80 M9 M59
G0 X0.0 Y0.0 Z5.0
M30

baker

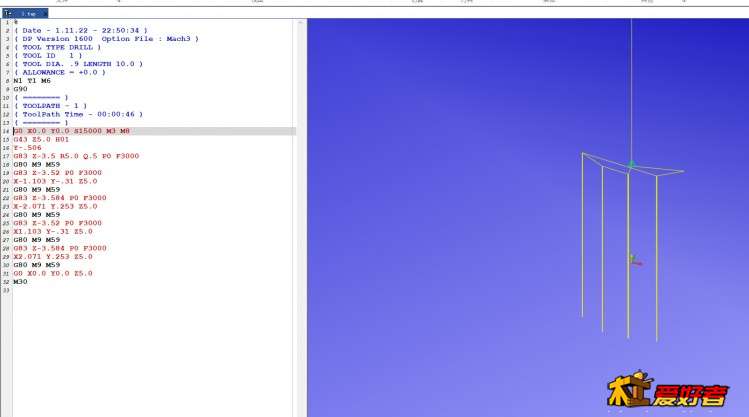

确实是有5个钻孔循环  为什么模拟只有四个呢。。。以前用artcam编没问题    就是位置精度不够，，

知L

换个后处理再试试
